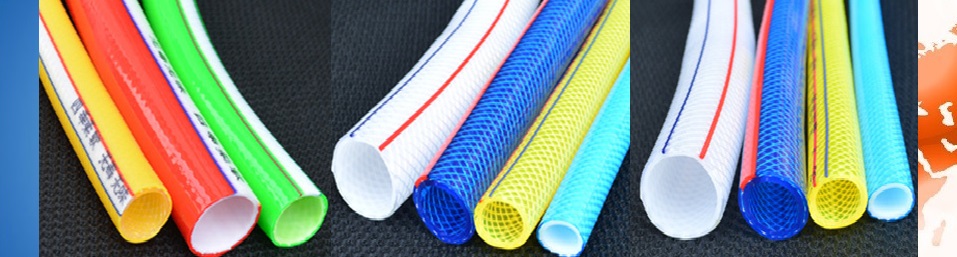

PVC BRAIDED HOSE
◇Being transparent, portable, with high tensil strength, good resistance to high pressure, hardening and erosion, beautiful looks, and no poison.
◇ Working temperature:0℃ to 65℃.
◇It is widely used in food stuffs and sanitation lines and the best choice for conveying air, water, gas, oil and some other liquid and gas materials.
| Nominal Dimension |
Hose Dimension |
W./Length |
Length |
Working Pressure |
Bursting Pressure |
Parking Measurement |
| Inch |
I.D./mm |
O.D./mm |
Kg |
M |
Bar |
Bar |
D/mm |
H/mm |
| 13/64 |
5 |
9 |
10 |
170 |
9 |
30 |
400 |
140 |
| 1/4 |
6 |
10 |
10 |
148 |
8 |
27 |
400 |
140 |
| 6 |
11 |
10 |
112 |
10 |
30 |
400 |
140 |
| 6 |
12 |
10 |
88 |
15 |
40 |
400 |
140 |
| 5/16 |
8 |
12 |
10 |
118 |
9 |
24 |
420 |
160 |
| 8 |
13 |
10 |
90 |
10 |
30 |
420 |
160 |
| 8 |
14 |
10 |
72 |
12 |
32 |
450 |
160 |
| 3/8 |
9 |
13 |
10 |
108 |
7 |
27 |
450 |
160 |
| 9 |
14 |
10 |
83 |
8 |
30 |
450 |
160 |
| 13/32 |
10 |
14 |
10 |
100 |
7 |
24 |
450 |
160 |
| 10 |
15 |
10 |
76 |
8 |
25 |
450 |
160 |
| 10 |
16 |
10 |
61 |
10 |
30 |
450 |
160 |
| 1/2 |
12 |
16 |
20 |
169 |
7 |
20 |
560 |
180 |
| 12 |
17 |
20 |
130 |
9 |
21 |
560 |
180 |
| 12 |
18 |
20 |
105 |
10 |
27 |
560 |
180 |
| 1/2 |
13 |
17 |
20 |
158 |
5 |
15 |
580 |
180 |
| 13 |
18 |
20 |
122 |
60 |
18 |
580 |
180 |
| 13 |
19 |
20 |
99 |
8 |
24 |
580 |
180 |
| 35/64 |
14 |
19 |
20 |
115 |
6 |
18 |
580 |
190 |
| 14 |
20 |
20 |
93 |
7 |
21 |
580 |
190 |
| 5/8 |
15 |
19 |
20 |
138 |
6 |
18 |
580 |
220 |
| 15 |
20 |
20 |
108 |
7 |
20 |
580 |
220 |
| 15 |
21 |
20 |
87 |
8 |
24 |
580 |
220 |
| 5/8 |
16 |
20 |
20 |
131 |
6 |
16 |
580 |
220 |
| 16 |
21 |
20 |
102 |
7 |
20 |
580 |
220 |
| 16 |
22 |
20 |
83 |
8 |
24 |
580 |
220 |
| 45/64 |
18 |
24 |
20 |
75 |
6 |
18 |
580 |
220 |
| 3/4 |
19 |
23 |
20 |
112 |
5 |
15 |
580 |
220 |
| 19 |
24 |
20 |
88 |
6 |
18 |
580 |
220 |
| 19 |
25 |
20 |
72 |
7 |
21 |
580 |
220 |
| 19 |
26 |
20 |
60 |
8 |
24 |
580 |
220 |
| 25/32 |
20 |
25 |
20 |
84 |
5 |
15 |
580 |
220 |
| 20 |
26 |
20 |
68 |
6 |
18 |
580 |
220 |
| 20 |
27 |
20 |
58 |
7 |
21 |
580 |
220 |
| 55/64 |
22 |
30 |
20 |
46 |
7 |
21 |
580 |
220 |
| 1 |
25 |
30 |
20 |
69 |
5 |
15 |
640 |
230 |
| 25 |
31 |
20 |
56 |
6 |
18 |
640 |
230 |
| 25 |
32 |
20 |
47 |
6 |
18 |
640 |
230 |
| 1-1/4 |
32 |
39 |
30 |
57 |
4 |
12 |
770 |
230 |
| 32 |
40 |
30 |
49 |
5 |
15 |
770 |
230 |
| 32 |
41 |
30 |
43 |
6 |
18 |
770 |
230 |
| 1-1/2 |
38 |
45 |
30 |
49 |
4 |
12 |
770 |
230 |
| 38 |
46 |
30 |
42 |
5 |
15 |
770 |
240 |
| 38 |
47 |
30 |
37 |
5 |
15 |
770 |
240 |
| 1-3/4 |
45 |
55 |
50 |
47 |
5 |
15 |
900 |
240 |
| 2 |
50 |
58 |
50 |
50 |
4 |
12 |
980 |
240 |
| 50 |
59 |
50 |
50 |
4 |
12 |
980 |
240 |
| 50 |
60 |
50 |
50 |
4 |
12 |
980 |
240 |
| 50 |
62 |
50 |
50 |
5 |
15 |
980 |
240 |
| 2-33/64 |
64 |
78 |
50 |
50 |
4 |
10 |
1050 |
280 |
| 3 |
75 |
90 |
50 |
50 |
4 |
10 |
1050 |
300 |
|
