PVC LINED FIRE HOSE

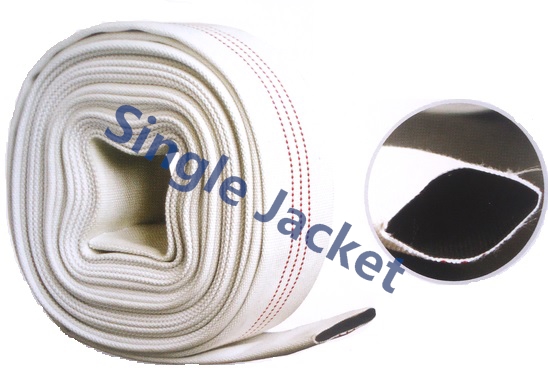

Single Jacket: the hose weave jacket is made of high tenacity polyester yarn and polyester silk. Lining is PVC. It is light, soft, easily rolling, aging resistance.
![](Picture/PVC lined single.jpg) |
Inner Dia |
Working Pressure |
Test Pressure |
Burst Pressure |
Length |
Inch |
mm |
Mpa/BAR/PSI |
Mpa/BAR/PSI |
Mpa/BAR/PSI |
M/Feet |
1" |
25 |
1.0/10/150
1.3/13/190
1.6/16/240
2.0/20/300 |
1.5/15/220
2.0/20/300
2.4/24/360
3.0/30/450 |
3.0/30/450
3.9/39/580
4.8/48/720
6.0/60/900 |
10/33
15/50
20/66
25/82
30/100 |
1-1/2" |
38 |
1-3/4" |
45 |
2" |
52 |
2-1/2" |
64 |
2-3/4" |
70 |
1.0/10/150
1.3/13/195
1.6/16/240 |
1.5/15/220
2.0/20/300
2.4/24/360 |
3.0/30/450
3.9/39/580
4.8/48/720 |
3" |
75 |
4" |
102 |

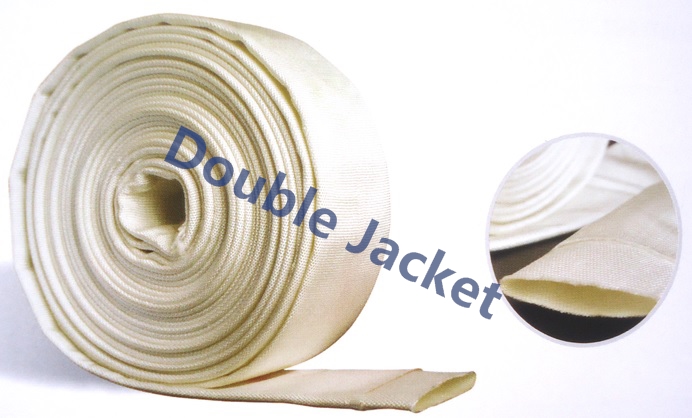

Double Jacket: the hose is made of high tenacity polyester yarn and polyester silk as weave jacket. Lining is PVC. The jacket is plain or twill weave.
Thejacket constructions includes a second closely woven jacket for extra durability, safety factor, and higher service pressure.
It is higher pressure resistance,
aging and Ozone resistance.
![](Picture/PVC linded double.jpg) |
Inner Dia |
Working Pressure |
Test Pressure |
Burst Pressure |
Length |
Inch |
mm |
Mpa/BAR/PSI |
Mpa/BAR/PSI |
Mpa/BAR/PSI |
M/Feet |
1" |
25 |
2.0/20/300
2.5/25/370
3.0/30/450 |
3.0/30/450
3.8/38/550
4.5/45/650 |
6.0/60/900
7.5/75/1100
9.0/90/1300 |
10/33
15/50
20/66
30/100
|
1-1/2" |
38 |
1-3/4" |
45 |
2" |
52 |
2-1/2" |
64 |
Colored Hose: The hose is made of colorful polyester silk as weave jacket. Lining is PVC. The jacket is plain or twill
weave. Various hoses dyed with
different colors are prone to be distinguished from each other. It is strong, withstands abrasion
and corrosion.
![](Picture/PVC lined color.png) |
Inner Dia |
Working Pressure |
Test Pressure |
Burst Pressure |
Length |
Inch |
mm |
Mpa/BAR/PSI |
Mpa/BAR/PSI |
Mpa/BAR/PSI |
M/Feet |
1" |
25 |
1.0/10/150
1.3/13/190
1.6/16/240
2.0/20/300 |
1.5/15/220
2.0/20/300
2.4/24/360
3.0/30/450 |
3.0/30/450
3.9/39/580
4.8/48/720
6.0/60/900 |
10/33
15/50
20/66
25/82
30/100
|
1-1/2" |
38 |
1-3/4" |
45 |
2" |
52 |
2-1/2" |
64 |
2-3/4" |
70 |
1.0/10/150
1.3/13/195
1.6/16/240 |
1.5/15/220
2.0/20/300
2.4/24/360 |
3.0/30/450
3.9/39/580
4.8/48/720 |
3" |
75 |
4" |
102 |
|
