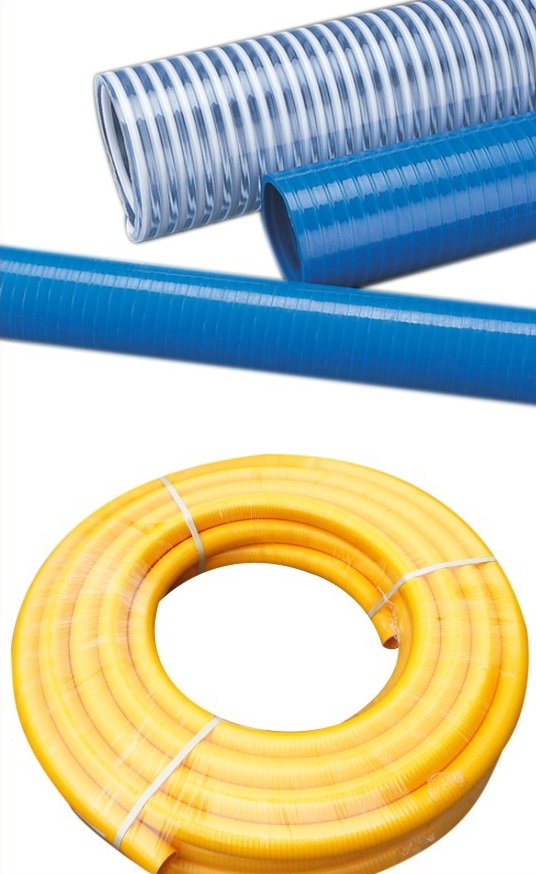

PVC SUCTION HOSE
◇Working temperature:-20℃ to 75℃.
◇Length
is 10m to 30m.
◇It is light in weight and flexible with good cold and hot resistance. It has small bmding radius with high working pressure. It's ideal tool for drawing and conveying water, oil, light acids and powder in factory, agriculture and construction excellent substitue for rubber hose, cement hose&metal hose..
![](Picture/PVC suction hose.jpg) |
Inner Dia |
Hose Dimension |
Operation Pressure |
Net Weight |
Measure |
Inch |
mm |
Well/mm |
Length/M |
Bar |
kg/roll |
CBM |
1" |
25 |
3
|
30m |
8
|
10.60 |
0.0563 |
1" |
25 |
3.5 |
30m |
9 |
12.60 |
0.0565 |
1-1/4" |
31 |
3 |
30m |
7 |
14.40 |
0.0710 |
1-1/4" |
31 |
3.5 |
30m |
8 |
15.00 |
0.0715 |
1-1/2" |
38 |
3 |
30m |
6.5 |
16.50 |
0.112 |
1-1/2" |
38 |
3.5 |
30m |
7 |
18.00 |
0.115 |
2" |
52 |
3 |
30m |
6 |
21.00 |
0.175 |
2" |
52 |
3.5 |
30m |
7 |
24.00 |
0.180 |
2-1/2" |
64 |
3 |
30m |
5 |
31.00 |
0.281 |
2-1/2" |
64 |
3.5 |
30m |
5.5 |
35.00 |
0.285 |
3" |
75 |
4.2 |
30m |
4.5 |
39.00 |
0.414 |
3" |
75 |
5 |
30m |
5 |
53.70 |
0.416 |
4" |
102 |
5.2 |
30m |
4 |
69.00 |
1.057 |
4" |
102 |
6 |
30m |
4.5 |
83.70 |
1.152 |
5" |
121 |
6 |
10m |
4 |
28.00 |
0.187 |
6" |
152 |
7 |
10m |
4 |
42.00 |
0.269 |
|
