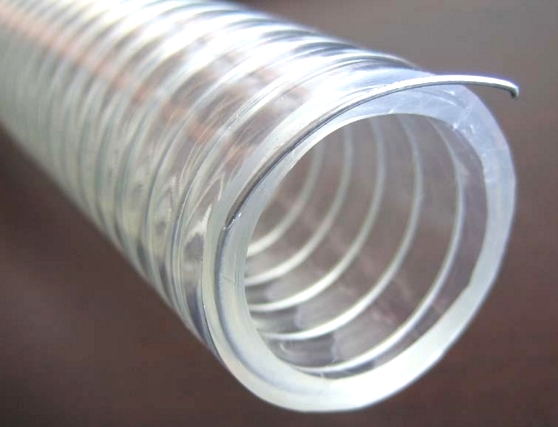

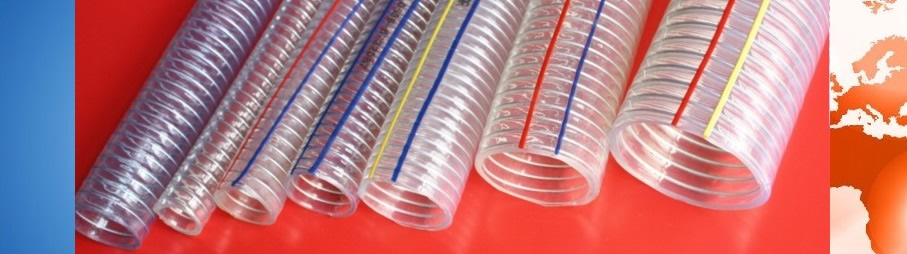

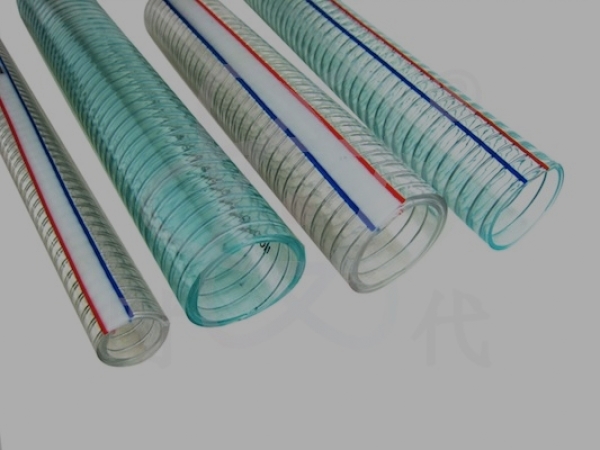

PVC SPRING HOSE
◇Working temperature:-5℃ to 65℃.
◇Length is 10m to 100m.

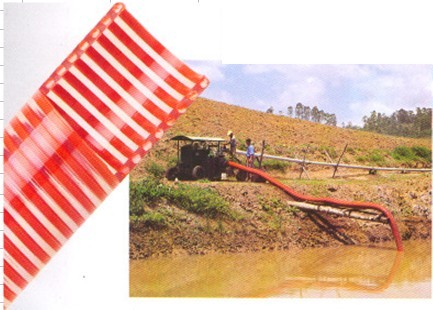

◇It caan be widely used in food, health industry and is an ideal pipe industrial,agricultural and engineering suction conveying water, oil, powder.

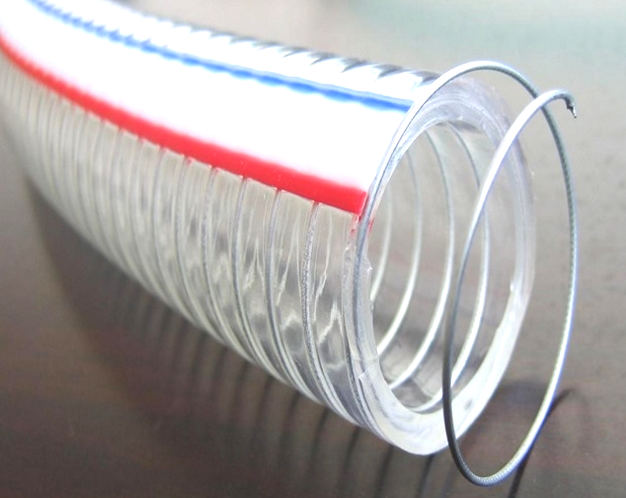

◇This product is made of PVC and wire, the PVC hose embedding steel skeleton, the quality is light,transparent (see pipe flow of objects), excellent weather resistance, small bending radius, good ability of resisting pressure. Can keep the original shape in a vacuum and high pressure condition. Can increase the marking line on the pipe surface, more beautiful.

Measurement	Hose Dimension			Working Pressure	Bursting Pressure		Weight	Volume
Inch	I.D./mm	O.D./mm	Length/M	Bar	at20℃/bar	at60℃/bar	kg/roll	m3/roll
1/4"	6	11	100m	8	70	16	11.0	0.036
5/16"	8	13	100m	8	60	16	14.0	0.046
3/8"	9	15	100m	8	55	15	18.0	0.053
1/2"	12	18	100m	6	40	15	20.0	0.068
5/8"	15	22	100m	6	35	13	31.0	0.096
3/4"	19	26	50m	5	30	12	19.0	0.073
1"	25	33	50m	4	25	10	27.5	0.096
1-1/4"	32	41	40m	4	20	9	31.6	0.125
1--1/2"	38	48	40m	4	18	8	40.5	0.165
1-3/4"	45	56	40m	4	17	8	53.5	0.305
1-7/8"	48	59	40m	4	16	7	56.0	0.315
2"	50	62	40m	4	16	7	63.0	0.318
2-3/8"	60	74	30m	4	15	7	67.0	0.295
2-1/2"	63	80	20m	4	15	5	57.5	0.263
3"	75	92	20m	4	13	5	66.8	0.337
3-1/2"	90	108	10m	4	12	5	42.0	0.384
4"	100	118	10m	3.5	10	5	48.0	0.400
5"	127	143	10m	3.5	10	5	52.0	0.420
6"	152	168	10m	3.5	10	5	62.0	0.430
8"	200	220	10m	3.5	10	5	100	0.480
